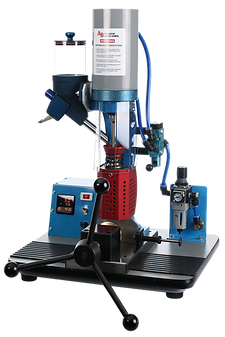

AB-100

Manual Plastic Injector

  • Easy to read and adjust digital temperature controller.

  • Aircraft spec aluminum body.

  • Easy view sealed material hopper.

  • 316 Stainless steel injection chamber and plunger for corrosion resistance.

  • No-lube pneumatic devices, ideal for medical and clean-room applications.

  • Working area is protected by a transparent safety-guard and safety red heat shield.

  • Transportable, requires no permanent installation.

  • Mold stop and ejector.

  • Quick acting manual clamp.

  • Hardened screw and bronze nut for long wear.

Feature Spotlight:


Temperature Controller


Mold Stop and Ejector


Manual Clamping


Double Wall Injection Cylinder


Sealed Material Hopper


Safety
Shields

Hands-on Video:

AB-100 Specifications

Dimensions: 18" x 21" x 25" / Weight: 70.4 lbs. (32 kg)

Clamp Force

Shot Capacity

Injection Press @ 125 PSI

Voltage Required

Heat Capacity

Temperature Range

Mold Height

4000 lbs.

1/4 oz (6 grams)

6333 PSI

120V 50/60HZ

Optional 220V

400 watts

100ºF - 650ºF

2-1/2"

Sprue Centre Line

Daylight bet. Mold Opening

Maximum Molding Area

Cycle Time

Ram Diameter

Nozzle Orifice

Hopper Capacity

7/8"

2" to 2-1/4"

3 sq. inches

Per Operator

9/16" (14.28 mm)

0.093"

15 oz (450 grams)
